Vigilex VQ

Flameless Devices

Flameless venting

APPLICATIONS

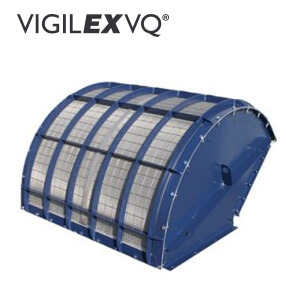

The VIGILEX VQ is a rectangular flameless device connected with an internal standard panel VIGILEX bursting panel.
It can be used with great effect indoors and outdoors and is a fast and easy solution instead of cumbersome and expensive solutions with pipe installations to the open air.
VIGILEX VQ provides effective low pressure resistance, eliminating the spread of flame and glowing particles. During the early stage of an explosion the explosion vent opens. The flame, burned and unburned dust enter the flame arrestor element. Flame propagation beyond the VQ is prevented by energy dissipation in the filter element, reducing the burning fuel below its ignition temperature.
The dust is retained within the VQ and gases from the explosion are vented through the device into the external atmosphere around the device.

VL flat vent panel or VD domed vent panel included
Mild steel body + coating
Stainless steel mesh
Burst sensor VIGILEX INR included
Ex II GD
Ex II 2 D
EN 16009
EC Certificate : INERIS 14 ATEX 0049 X
Production quality assurance notification : INERIS 08ATEXQ406
Certified for : Organic dust – Fiber dust – Metal dust – Gas

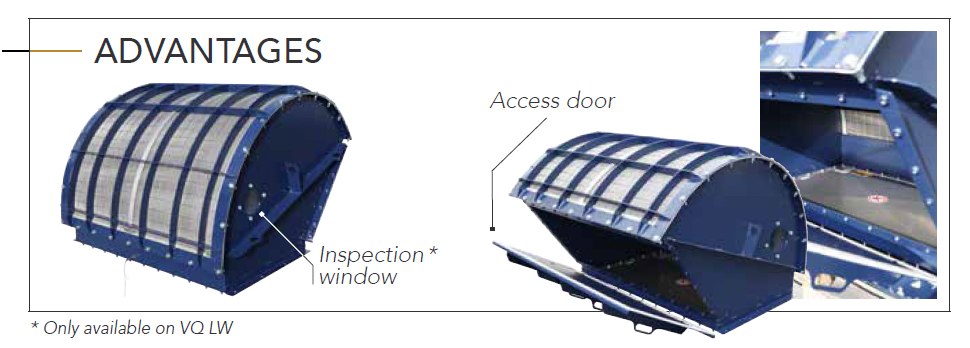

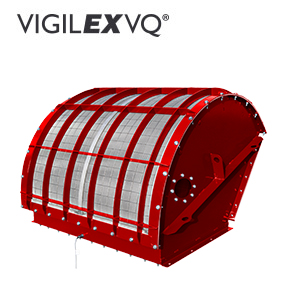

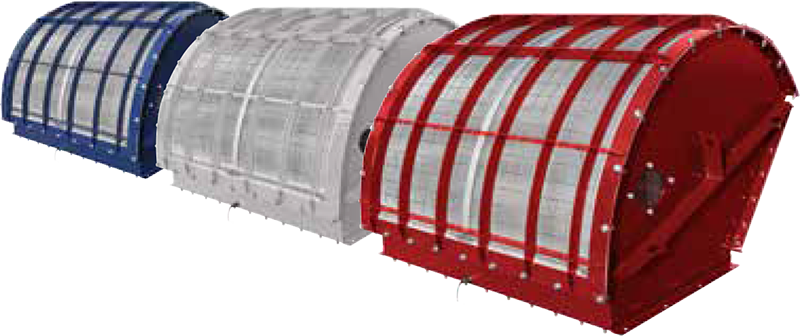

Different colors on request

Metal dust approved EN 16009

The VIGILEX VQ is certified to protect all facilities, equipment and machinery which process combustible metals.
It is the perfect safety device to avoid a catastrophic failure caused by a metal dust explosion.
The technology of the VIGILEX VQ design ensures the maximum resistance to the high temperatures generated by a metal dust fire or
explosion creating a safe working environment.

Flameless dimensions

Light weight - Pred : 0,5 bar

Heavy Weight - Pred : 2,3 bar

VIGILEX VQ
MODEL
IN COMBINATION WITH VENT PANEL
Nominal Size
(mm/inch)
IN COMBINATION WITH VENT PANEL
Nominal Square
(m2/ft2)
BOLT SPECS
Qty
BOLT SPECS
Size
VIGILEX VQ
MODEL
EN COMBINAISON AVEC
DES ÉVENTS D’EXPLOSION
Taille Nominale
(mm/inch)
EN COMBINAISON AVEC
DES ÉVENTS D’EXPLOSION
Surface Nominale
(m2/ft2)
BOULONS
Qté
BOULONS
Taille
VIGILEX VQ
MODEL
EN COMBINACIÓN CON PANEL
DE VENTEO O EXPLOSIÓN
Tamaño nominal
(mm/pulgadas)
EN COMBINACIÓN CON PANEL
DE VENTEO O EXPLOSIÓN
Cuadrado nominal
(m2/ft2°°
TORNILLOS
Cantidad
TORNILLOS
Tamaño
VIGILEX VQ
MODELL
IN KOMBINATION MIT ENTLÜFTUNGS
Nennweite
(mm/zoll)
IN KOMBINATION MIT ENTLÜFTUNGS
Nennfläche
(m2/ft2)
SCHRAUBEN
SPEZIFIKATIONEN
Mng
SCHRAUBEN
SPEZIFIKATIONEN
Größe
VIGILEX VQ 170 x 470170 x 470 mm - 7 x 19 in0,0785 m2 - 0,845 sq ft20M10 x 30
VIGILEX VQ 270 x 458270 x 458 mm - 11 x 18 in0,1220 m2 - 1,315 sq ft22M10 x 30
VIGILEX VQ 300 x 500300 x 500 mm - 12 x 20 in0,1480 m2 - 1,595 sq ft24M10 x 30
VIGILEX VQ 305 x 610305 x 610 mm - 12 x 24 in0,1840 m2 - 1,980 sq ft26M10 x 30
VIGILEX VQ 350 x 650350 x 650 mm - 14 x 26 in0,2250 m2 - 2,425 sq ft26M10 x 30
VIGILEX VQ 490 x 590490 x 590 mm - 19 x 23 in0,2865 m2 - 3,084 sq ft32M10 x 30
VIGILEX VQ 610 x 610610 x 610 mm - 24 x 24 in0,3695 m2 - 3,975 sq ft32M10 x 30
VIGILEX VQ 457 x 890457 x 890 mm - 18 x 35 in0,4040 m2 - 4,349 sq ft34M10 x 30
VIGILEX VQ 586 x 920586 x 920 mm - 23 x 36 in0,5360 m2 - 5,770 sq ft42M10 x 30
VIGILEX VQ 645 x 1130645 x 1130 mm - 25 x 44 in0,7250 m2 - 7,804 sq ft34M10 x 30
VIGILEX VQ 920 x 920920 x 920 mm - 36 x 36 in0,8425 m2 - 9,068 sq ft50M10 x 30
VIGILEX VQ 1130 x11301130 x 1130 mm - 44 x 44 in1,2720 m2 - 13,696 sq ft58M10 x 30
VIGILEX VQ LWKst max 500Pmax ≤ 10 barPred ≤ 0,5 barPstat = 0,1 to 0,3 bar
VIGILEX VQ LWKst max 500Pmax ≤ 10 barPred ≤ 0,5 barPstat = 0,1 to 0,3 bar
VIGILEX VQ LWKst max 500Pmax ≤ 10 barPred ≤ 0,5 barPstat = 0,1 to 0,3 bar
VIGILEX VQ LWKst max 500Pmax ≤ 10 barPred ≤ 0,5 barPstat = 0,1 to 0,3 bar
VIGILEX VQ HWHW Kst max 500Pmax ≤ 10 barPred ≤ 2,3 bar
(Pred < 1,85 for VQ 920x920 and 1130x1130)
Pstat = 0,1 to 0,5 bar
ACCESSORIES FOR VIGILEX VQ
