Vigilex VQ R
Flameless Devices
Curved flameless venting
APPLICATIONS

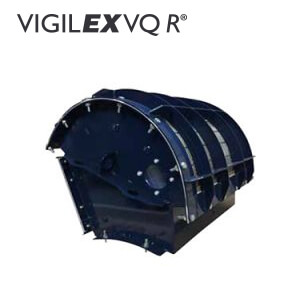

The VIGILEX VQ R is a cruved rectangular flameless device connected with a standard bursting panel VIGILEX VL R.

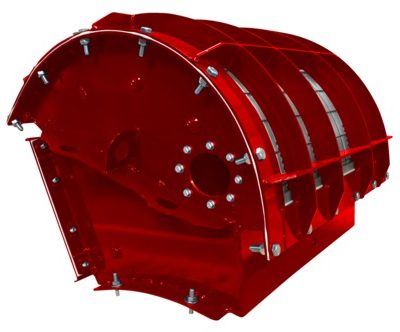

This curved flameless device can be instaled directly on cylindrical vessels.
Thereby avoiding the possibility of a material accumulation in front of the explosion panel.
VL-R Vent panel with silicone gasket included
Mild steel body + coating
Stainless steel mesh
Burst sensor VIGILEC SEC included
Radius on request
Corps inox 304L ou 316L
-
Explosion Protection Documentation
-
EU ATEX - Type examination certificate for flameless -
Questions for sizing of explosion panels for VQ - Production quality assurance notification
Metal dust approved EN 16009
The VIGILEX VQ is certified to protect all facilities, equipment and machinery which process combustible metals.
It is the perfect safety device to avoid a catastrophic failure caused by a metal dust explosion.
The technology of the VIGILEX VQ design ensures the maximum resistance to the high temperatures generated by a metal dust fire or
explosion creating a safe working environment.
FLAMELESS DIMENSIONS
| VIGILEX VQ MODEL | IN COMBINATION WITH VENT PANEL Nominal Size (mm/inch) | IN COMBINATION WITH VENT PANEL Nominal Square (m2/ft2) | BOLT SPECS Qty | BOLT SPECS Size | DOWNLOAD PDF |
|---|---|---|---|---|---|
| VIGILEX VQ MODEL | EN COMBINAISON AVEC DES ÉVENTS D’EXPLOSION Taille Nominale (mm/inch) | EN COMBINAISON AVEC DES ÉVENTS D’EXPLOSION Surface Nominale (m2/ft2) | BOULONS Qté | BOULONS Taille | TÉLÉCHARGER PDF |
| VIGILEX VQ MODEL | EN COMBINACIÓN CON PANEL DE VENTEO O EXPLOSIÓN Tamaño nominal (mm/pulgadas) | EN COMBINACIÓN CON PANEL DE VENTEO O EXPLOSIÓN Cuadrado nominal (m2/ft2°° | TORNILLOS Cantidad | TORNILLOS Tamaño | DESCARGAR PDF |
| VIGILEX VQ MODELL | IN KOMBINATION MIT ENTLÜFTUNGS Nennweite (mm/zoll) | IN KOMBINATION MIT ENTLÜFTUNGS Nennfläche (m2/ft2) | SCHRAUBEN SPEZIFIKATIONEN Mng | SCHRAUBEN SPEZIFIKATIONEN Größe | HERUNTERLADEN PDF |
| МОДЕЛЬ VIGILEX VQ | Номинальный размер с ВЕНТИЛЯЦИОННОЙ ПАНЕЛЬЮ (мм/дюймы) | Номинальная площадь с ВЕНТИЛЯЦИОННОЙ ПАНЕЛЬЮ (кв.м/кв. фут) | БОЛТЫ Количество | БОЛТЫ Размер | |
| VIGILEX VQ 170 x 470 | 170 x 470 mm - 7 x 19 in | 0,0785 m2 - 0,845 sq ft | 20 | M10 x 30 | |
| VIGILEX VQ 270 x 458 | 270 x 458 mm - 11 x 18 in | 0,1220 m2 - 1,315 sq ft | 22 | M10 x 30 | |
| VIGILEX VQ 300 x 500 | 300 x 500 mm - 12 x 20 in | 0,1480 m2 - 1,595 sq ft | 24 | M10 x 30 | |
| VIGILEX VQ 305 x 610 | 305 x 610 mm - 12 x 24 in | 0,1840 m2 - 1,980 sq ft | 26 | M10 x 30 | |
| VIGILEX VQ 350 x 650 | 350 x 650 mm - 14 x 26 in | 0,2250 m2 - 2,425 sq ft | 26 | M10 x 30 | |
| VIGILEX VQ 490 x 590 | 490 x 590 mm - 19 x 23 in | 0,2865 m2 - 3,084 sq ft | 32 | M10 x 30 | |
| VIGILEX VQ 610 x 610 | 610 x 610 mm - 24 x 24 in | 0,3695 m2 - 3,975 sq ft | 32 | M10 x 30 | |
| VIGILEX VQ 457 x 890 | 457 x 890 mm - 18 x 35 in | 0,4040 m2 - 4,349 sq ft | 34 | M10 x 30 | |
| VIGILEX VQ 586 x 920 | 586 x 920 mm - 23 x 36 in | 0,5360 m2 - 5,770 sq ft | 42 | M10 x 30 | |
| VIGILEX VQ 645 x 1130 | 645 x 1130 mm - 25 x 44 in | 0,7250 m2 - 7,804 sq ft | 34 | M10 x 30 | |
| VIGILEX VQ 920 x 920 | 920 x 920 mm - 36 x 36 in | 0,8425 m2 - 9,068 sq ft | 50 | M10 x 30 | |
| VIGILEX VQ 1130 x1130 | 1130 x 1130 mm - 44 x 44 in | 1,2720 m2 - 13,696 sq ft | 58 | M10 x 30 |
