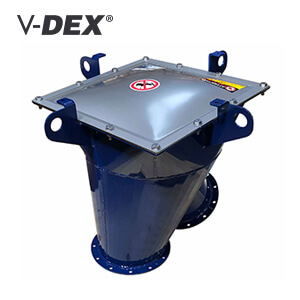

V-DEX

Diverter

APPLICATIONS

The V-DEX diverter is used to deflect explosions propagating through the ducts, preventing the spread of flames or overpressures in connected vessels.
This device reduces the risk of flame spread.

STANDARD CHARACTERISTICS

Body: Painted steell

Explosion vent panel VL or domed explosion vent panel VD

OPTIONS

Body: Stainless steel

CERTIFICATIONS

EN 14 797

EN 14 491

Explosion vent panel dimensions

DIVERTER CARACTERISTICS
TECHNICAL INFORMATION

DIVERTER CARACTERISTICS

MODEL	ø	H1	H2	D1	D2	L1	L2	T	Vent panel
MODEL	ø	H1	H2	D1	D2	L1	L2	T	Vent panel
MODEL	ø	H1	H2	D1	D2	L1	L2	T	Vent panel
MODELL	ø	H1	H2	D1	D2	L1	L2	T	Berstscheibe
МОДЕЛЬ	ø	H1	H2	D1	D2	L1	L2	T	Вентиляционная панель
Model A	200	150	555	200	410	410	410	685	VD 410x410
Model A	250	175	600	250	490	490	490	781	VD 490x490
Model A	300	200	700	300	610	610	610	875	VD 610x610
Model A	350	225	800	350	645	645	645	975	VD 645x645
Model A	400	250	900	400	780	780	780	1070	VD 780x780
Model A	450	275	1000	450	850	920	920	1165	2 x VD 457x890
Model A	500	300	1100	500	920	920	920	1260	2 x VD 457x890
Model A	550	325	1200	550	980	980	980	1355	2 x VD 457x890
Model A	600	350	1300	600	1070	1020	1020	1455	2 x VD 586x920
Model A	650	375	1400	650	1180	1180	1180	1550	2 x VD 586x920
Model B	700	400	1500	700	1250	1375	1130	1645	4 x VD 610x610
Model B	750	425	1600	750	1350	1455	1350	1740	4 x VD 610x610
Model B	800	450	1700	800	1430	1455	1350	1835	4 x VD 645x645
Model B	850	475	1800	850	1520	1605	1520	1930	4 x VD 586x920
Model B	900	500	1900	900	1600	1605	1520	2030	4 x VD 586x920
Model B	950	525	2000	950	1700	1785	1780	2125	6 x VD 457x890
Model B	1000	550	2100	1000	1780	1785	1780	2220	6 x VD 530x850

TECHNICAL INFORMATION

STIF MODEL	KST MAX	Pred. Max	PMAX	DUST
STIF MODEL	KST MAX	Pred. Max	PMAX	DUST
STIF MODEL	KST MAX	Pred. Max	PMAX	DUST
STIF MODEL	KST MAX	Pred. Max	PMAX	DUST
МОДЕЛЬ STIF	KST MAX	Pred. Max	PMAX	ПЫЛЬ
V-DEX	St2 ≤ 300 bar.m/s	0,8 bar.m/s	≤ 12 bar	Any kind of dust
